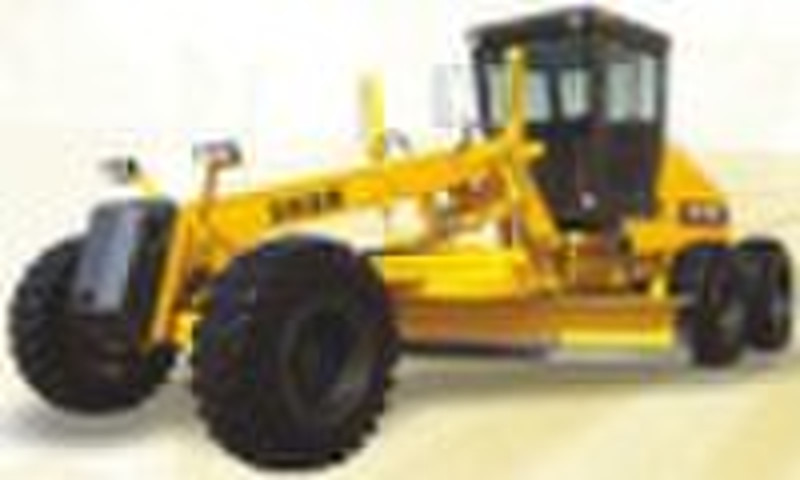

motor grader

1. Engine:-Type: PY135C;- Diesel: Cummins 6BT5.9;- Nominal power - 135Hp/100KW;- Rated frequency of rotation, (r/min) – 2300;- Max. Torque, (Nm/r/min) – 630/1400;2. Operating mass: 11000Kg -Rear axle load: 7810Kg3. Transmission: Torque converter and power-shift gearbox introduced from Germany ZF Inc. are integrated together 6 forward gears and 3 backward gears meet various requirements during machine’ working and transporting. -Speed gear no.:F6/R3;-Travel speed (Km/h):Forward speed: 1st gear5.002nd gear8.003rd gear13.004th gear20.005th gear30.006th gear42.00Reverse speed 1st gear5.002nd gear13.003rd gear30.004. Working equipment:Flexible hydraulic control system with two sets of HUSCO five way control valve; Imported hydraulic equalizing valve for the blade lifting; Patent hydraulically-operated pin drawing device is designed firstly in Luoyang, China.5. Axle: -Driving axle: integrated free-wheel anti-slip differential and strong roller chain drive tandem case; Box oscillated steering front axle with leaned wheels. -Front axle: pendulum-arm connecting rod structure, standard equipped free-maintenance rolling-plate circle device.6. Steering System: -center articulated joint and tilting turning front wheels can get crab movement of the entire machine.7. Braking System: -caliper disc brakes on four rear wheels and mechanical internal expanding parking brake let.8. Tire size: 13.00-24TG PR12;9. Overall dimension (mm) 8115x2380x315010. Front Blade:- Blade width(mm)2730;- Blade height(mm)930.11. Rear ripper:- Number of teeth of scarifying equipment: 5; - Maximum penetration of tooth of scarifying equipment(mm) not less than:340:- Operating width of scarifying equipment(mm):2060.12. Middle Blade - Mold board length(mm)3650; - Mold board height (mm)610;- Cutting angle: 90°
