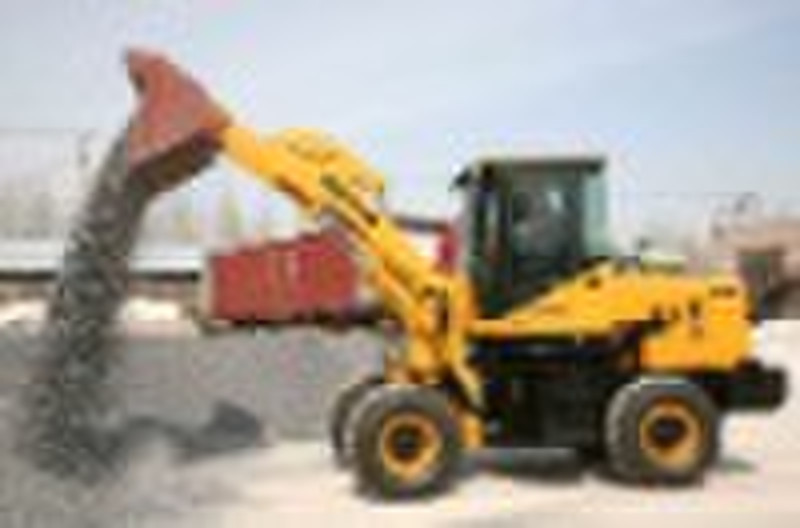

mini VT316H wheel loader

VT316hWheel loader Performance 1, Technical features ItemPerformanceItemPerformanceStandard bucket capacity (m3) 0.8Min. turning radius outside rear wheel(mm) 6180Rated load(kg) 1600Min. turning radius outside bucket(mm) 5900Max.traction force(by engine)(kN) ≥56.0Max. break force(kN) ≥53.0Static tipping load(kN) ≥24.0Grade ability(°) 30Travel speed Speeds12Forward(km/h)0 70 21Reverse(km/h)0 182, Dimension and weight ItemPerformanceItemPerformanceLength(With bucket on ground)(mm) 5620Bucket width(mm) 1930Height of the loader(mm) 2800Tread(mm) 1500Width from outside wheel(mm) 1850Wheelbase (front/back)(mm) 2165Min. ground clearance(mm) 305Operating weight(kg) 5200Max Dumping height(-450dump angle)(mm) 3000Axles 2Dumping distance(-450dump angle)(mm) 885 3, Engine ItemPerformanceitemPerformanceModel 4102G41Cylinder No. 4Rated power(/kW) 47Min fuel consumption ration(g/kW.h) ≤258Rated rmp(r/min) 1540Max torque (N.m) 2214. Transmission system ItemPerformanceTorque conventorType Single phase,3 elementsTorque ratio 3.13Cooling system Circulated, water cooledInlet oil pressure(MPa) 0.55Outlet oil pressure(MPa) 0.25TransmissionType Planetary power shift+ high &low speedShift Forward 2 Reverse 1Working pressure(MPa) 1.373-1.569Main drivetype Spiral gear, first stage decelerateGear ratio 5.833Final reducetype first stage, planetary gear decelerateGear ratio 3.66Driving axle and tiretype Four wheel driveTire specification 17.5-16Tire pressure(MPa) Front wheel0.34±0.01Rear wheel0.28±0.01Break systemService break Air over hydraulic disc brake on 4 wheelsService break(MPa) 0.784Parking break Manual parking brake5,Working system itemPerformanceWorking pressure 17.5 MPaLifting time(full loaded) ≤4.8sLowering time(empty) ≤3sDumping time(empty) ≤1.6sTotal ≤9.4s
